Specifications of PV-T (Polycrystalline Silicon)

Thermal Efficiency Map


Specifications of PV-T(polycrystalline silicon)

Electrical characteristic under STC
Module type DYY-250-PVT
Maximum power, Wp 250
Voltage at Maximum power, Vmp (V) 30.69
Current at Maximum power, Imp (A) 8.15
Open circuit voltage, Voc (V) 38.12
Short circuit current, Isc (A) 8.63
Module efficiency (%) 15.31
Power tolerance (W) -0/+5
Operating temperature, -40~85
Maximum voltage, Vdc (V) 600
Series Fuse rating (A) 15

Mechanical characteristic
Solar cell type Poly-crystalline
Dimensions (mm) 1650*992*42
Weight, kg 38
Front glass Tempered glass
Encapsulation EVA
Rear Tedlar
Junction Box IP65, Kit with Solar Cables & Connectors
Number of cells 60

Thermal characteristic
House Mg-Al-Zn Alloy
Heat transfer material Stainless
Insulation Glass Fiber
Connection dimension, mm Φ25.4
Maximum operating Pressure (Bar) 10

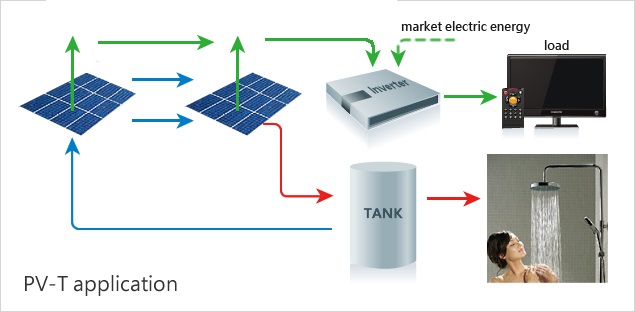

Applications of PV-T Solar water heaters ( Both of independent or grid-tied style )


Solar heat system for slopping roofs

Many roofs are based on slopping roofs, therefore, either flatbed solar collector or PV-T optical water heater goes well with slopping roofs. In addition to enhancing the appearance and using the space well, it can prevent the roofs from direct sun irradiation.
